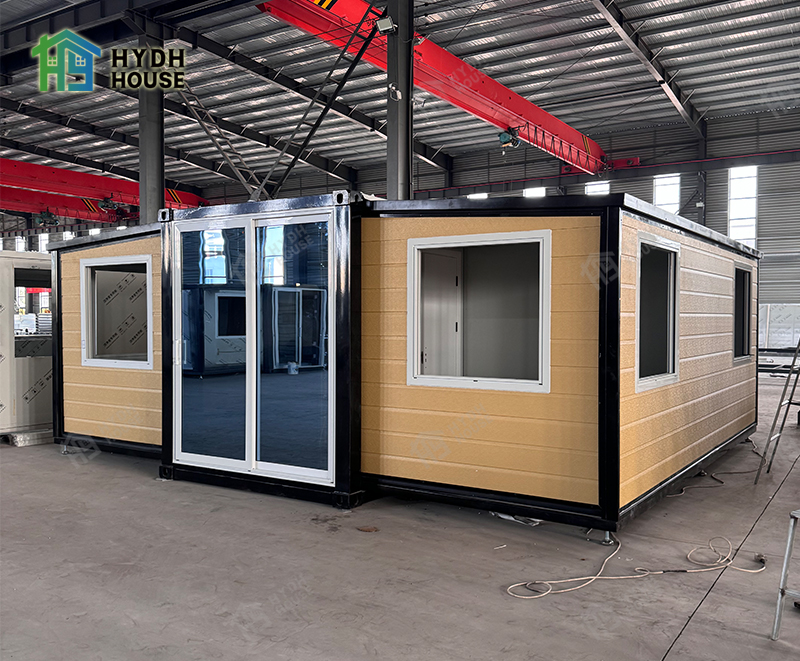

20ft Modular house with yellow carved panels

  • Unfold size: 5900*6420*2560mm

  • Folded size: 5900*2250*2560mm

  • Weight: 3500KG

  • Service life: 30~40 years

  • Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

  • GET A QUOTE: info@hydhhouse.com


  • Product Details
  • Advantages
  • Specifications
  • Application
  • Packaging
  • Case

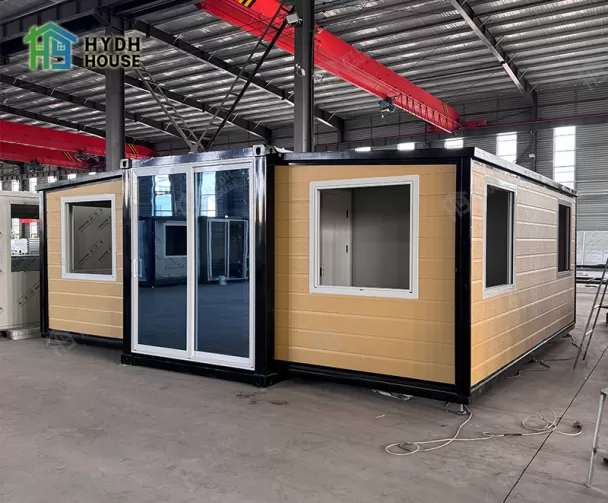

20ft Modular house with yellow carved panels

Product custom size
720 External standard size
5900*4830*2530mm
20FT External standard size
5900*6420*2530mm
30FT External standard size
9000*6420*2530mm
40FT External standard size
11800*6420*2510mm
2.4m height 20FT External standard size
5900*6420*2560mm
2.4m height 40FT External standard size11800*6420*2560mm
Usage
House,Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room
Advantages
1. Large space, Large -sized windows and door. 20ft 40ft expandable container house can be choose, also supply customized according to your demand
2. Easy and fast installation. 4 hours/set, save labor cost
3. Pre-build the electricity and water plumbing, bathroom fittings
4. Waterproof wall board integrated design


20ft Modular house with yellow carved panels

20FT Prefab Expandable House, 2.4 meters inner height



Expandable mobile house details
Main Material
Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Color
White, Charcoal or according to customer's requirement.
Steel Structure
3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU
sandwich panel; Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm.
Can be customized according to demand.
Window
Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Floor
The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength.
Connection Kits
PVC connection kits for floor, ceiling, walls.
Electricity
3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc.
Optional Accessory
A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc.


Product features
Water proof
99.9999%
Fireproofing
Grade A
Withstand wind
120km/h
Anti-seismic
Grade 10
Sound insulation
≥30 dB
Roof live load
1.0kn/m2
Floor live load
2.5kn/m2
Wall live load
1.0kn/m2
Service Life
30~40years

20FT Prefab Expandable House, 2.4 meters inner height

20FT Prefab Expandable House, 2.4 meters inner height

20FT Prefab Expandable House, 2.4 meters inner height

6635e283c8b76.jpg669dc83daf2dc.jpg20ft Modular house with yellow carved panels

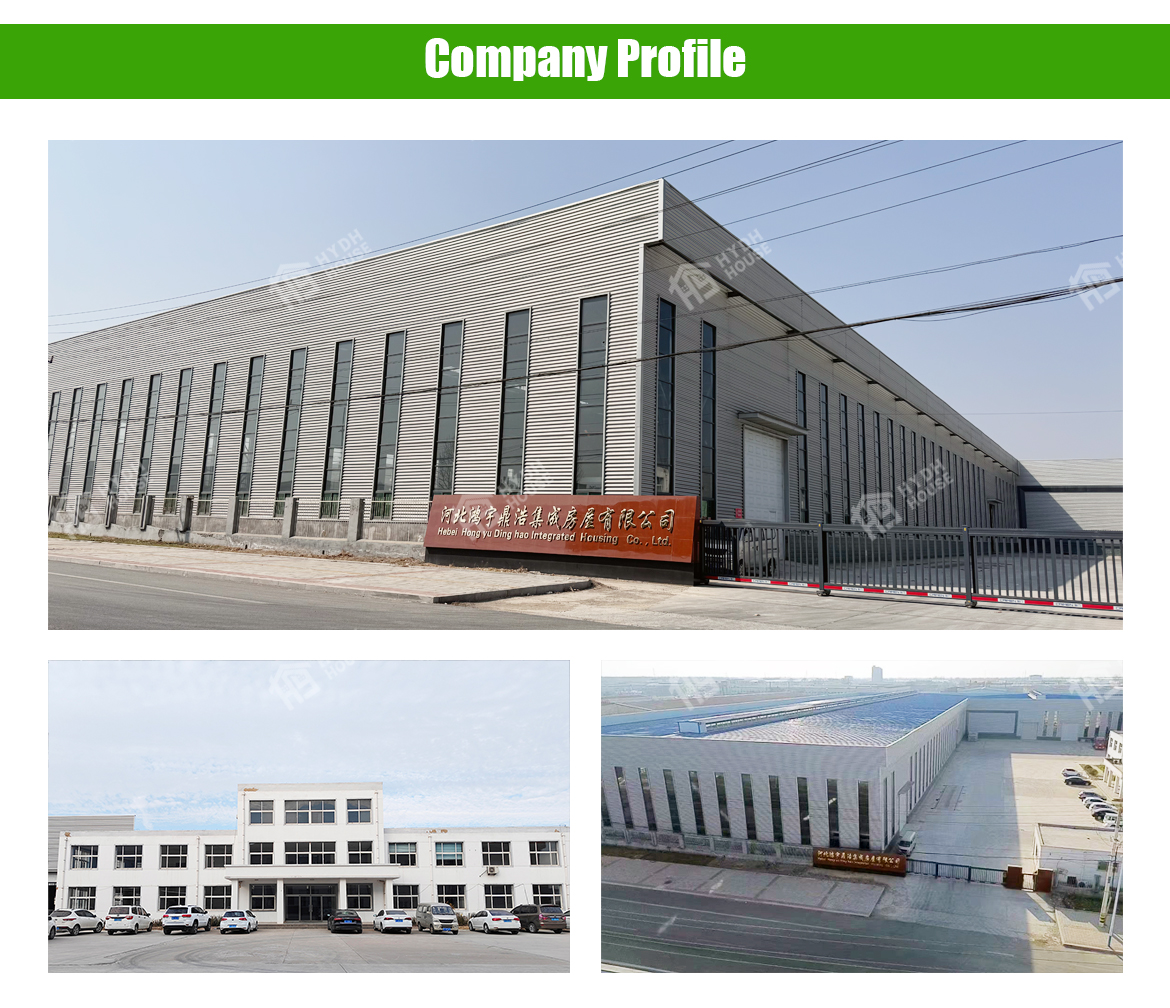

Hebei Hongyu Dinghao Module Housing Co., Ltd. was established in 2018. The factory mainly produces expandable container houses, flat-pack houses, and folding houses. The factory covers an area of 26,000 square meters, with the production workshop being more than 20,000 square meters.


The company is committed to providing a series of complete supporting services for new integrated housing and its supporting products, including R&D, design, production, processing, sales, transportation, installation, construction, after-sales service, and more. With 8 years of R&D and production experience, the company has the right to engage in import and export foreign trade.


Adhering to the business philosophy of green building, energy saving, and environmental protection, the company focuses on providing comprehensive residential solutions for builders, design institutes, developers, and building materials traders. Most of the materials used in the products have passed certifications such as CECNAS, BV, and ISO9001.


Pre-sales design consulting services, technical guidance services, and after-sales tracking services have earned the trust of customers. The company has a complete new modular housing R&D system, technology system, manufacturing system, and operation and maintenance system. It possesses a full set of production facilities, including a small parts workshop, profile workshop, welding workshop, and painting workshop. The company specializes in the production of high-end modular container houses and can also customize products according to customer requirements.


Product parts are highly integrated and modular, with characteristics such as sealing insulation, advanced fire prevention, high installation efficiency, structural stability, energy saving and emission reduction, long service cycle, and resistance to harsh environmental climates. The products are widely used in various fields, including construction, railway, highway, water conservancy engineering, electricity, field work, tourism, military barracks, mobile computer rooms, and temporary offices.


In recent years, the company has been adhering to customer demand as the core. "Accurate, reliable, professional" is the company's production spirit and service concept. It is gradually establishing a good brand and improving the after-sales service system to provide guidance and help for a large number of customers facing difficulties and problems.


20ft Modular house with yellow carved panels669f573bb10be.jpg20ft Modular house with yellow carved panels20ft Modular house with yellow carved panels20ft Modular house with yellow carved panels669dc8556401b.jpg20ft Modular house with yellow carved panels20ft Modular house with yellow carved panels

Q: Are you a manufacturing plant or a trading company? A: We are a manufacturing plant located in Hengshui, China, covering an area of 26,000 square meters. You are welcome to visit us at any time.


Q: What factors should be considered in customizing your products? A: 1. It is necessary to consider whether the size of our products meets the size of your building land. 2. Local climate conditions, wind speed, snow load, seismic requirements. 3. The use of the product, such as residential, office, shop, workers' dormitory, etc.


Q: Do you provide design services? A: Yes, we can provide design solutions according to your local climate conditions, including adding stairs, terraces, roofs, awnings, guardrails, etc., and we can also produce according to your design.


Q: How to ensure the quality of your products? A: In the production process, we have professional personnel tracking inspection from raw material inspection, production inspection to finished product packaging and shipping inspection. Protection and quality are our first tasks.


Q: Which countries or regions do our products export to? A: Our main markets are Australia, Europe, and Asia, among others. Our products are exported to Australia, New Zealand, Indonesia, Thailand, the United States, the United Kingdom, Canada, and other countries.


Q: Can I order a sample to test the quality? A: Yes, we can show the detailed information of the product through videos and photos. If you order only one sample, the cost price will be higher, and the freight is not economical. Usually, we recommend you order a 40HQ for two 20-foot houses.


Q: Are your prices competitive with those of other companies? A: Our business goal is to offer the same quality at the most favorable price, and the same price for the best quality. We will make every effort to reduce your costs and guarantee that you get the best product for your money.


Q: How to get the quotation of the project? A: Email: info@hydhhouse.com, +86 158 0328 9727 (Mobile / WeChat / WhatsApp). We will get back to you within 8 hours.


Q: What are your terms of payment? A: The payment terms for standard products are 30% deposit with the balance paid before delivery. For custom products, it depends on the design. Acceptable delivery methods include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES. Payment methods accepted: T/T, L/C, D/P, Moneygram, Credit card, PayPal, Western Union.

R&D Capacity

R&D Capacity

The company has 8 years of research and development and production experience

Production Capacity

Production Capacity

We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.

Quality Control

Quality Control

Most of the materials used in the container expandable homes have passed CECNAS, BV, iso9001 and other certifications.

OEM Capacity

OEM Capacity

We provide creative design and construction services for private customization and other fields.

Trade Capacity

Trade Capacity

Our expandable container homes are sold all over the world and we have rich experience in foreign trade.

CEertificates

CEertificates

Our 20ft mobile expandable prefab houses have successfully passed the CE certification, and we will do better


Product custom size
720 External standard size
5900*4830*2530mm
20FT External standard size
5900*6420*2530mm
30FT External standard size
9000*6420*2530mm
40FT External standard size
11800*6420*2510mm
2.4m height 20FT External standard size
5900*6420*2560mm
2.4m height 40FT External standard size11800*6420*2560mm
Usage
House, Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room
Advantages
1. Large space, Large -sized windows and door. 20ft 40ft can be choose, also supply customized according to your demand
2. Easy and fast installation. 4 hours/set, save labor cost
3. Pre-build the electricity and water plumbing, bathroom fittings
4. Waterproof wall board integrated design


Product details
Main Material
Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Color
White, Charcoal or according to customer's requirement.
Steel Structure
3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU
sandwich panel; Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm.
Can be customized according to demand.
Window
Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Floor
The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength.
Connection Kits
PVC connection kits for floor, ceiling, walls.
Electricity
3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc.
Optional Accessory
A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc.


Product features
Water proof
99.9999%
Fireproofing
Grade A
Withstand wind
120km/h
Anti-seismic
Grade 10
Sound insulation
≥30 dB
Roof live load
1.0kn/m2
Floor live load
2.5kn/m2
Wall live load
1.0kn/m2
Service Life
30~40years


Residential

Residential

Office

Office

Hotel

Hotel

project

project

Rental housing

Rental housing

Homestay

Homestay

As a professional container expandable home manufacturer, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of container expandable homes for sale, with 8 years of research and development and production experience, and has the right to import and export foreign trade.

20Ft Expandable Modular House

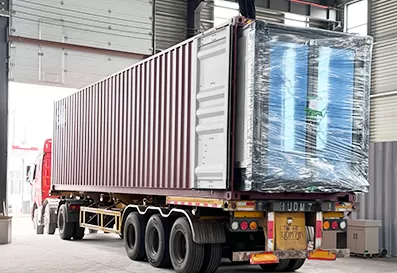

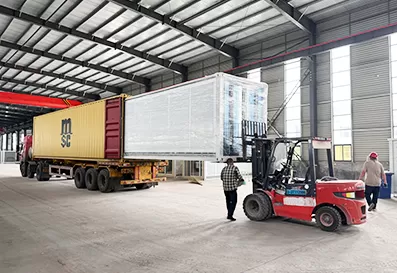

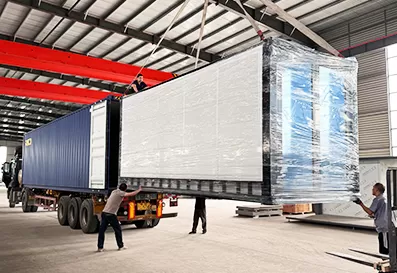

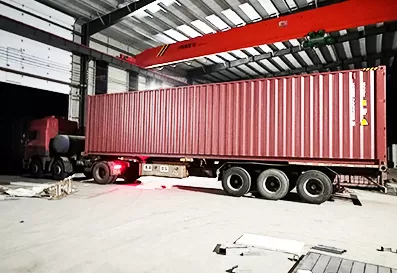

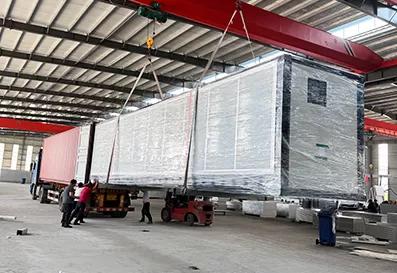

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

  • Container Expandable Home Packaging

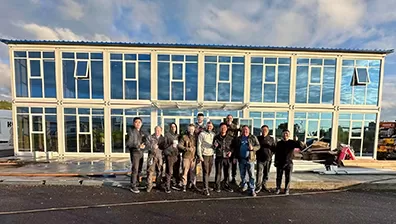

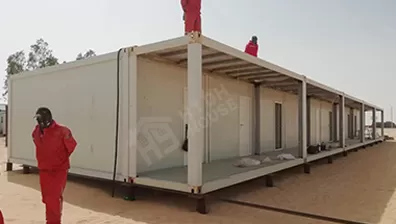

Niger case

Niger case

Russian case

Russian case

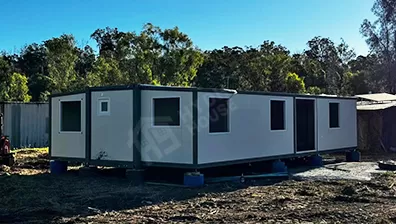

Australian case
