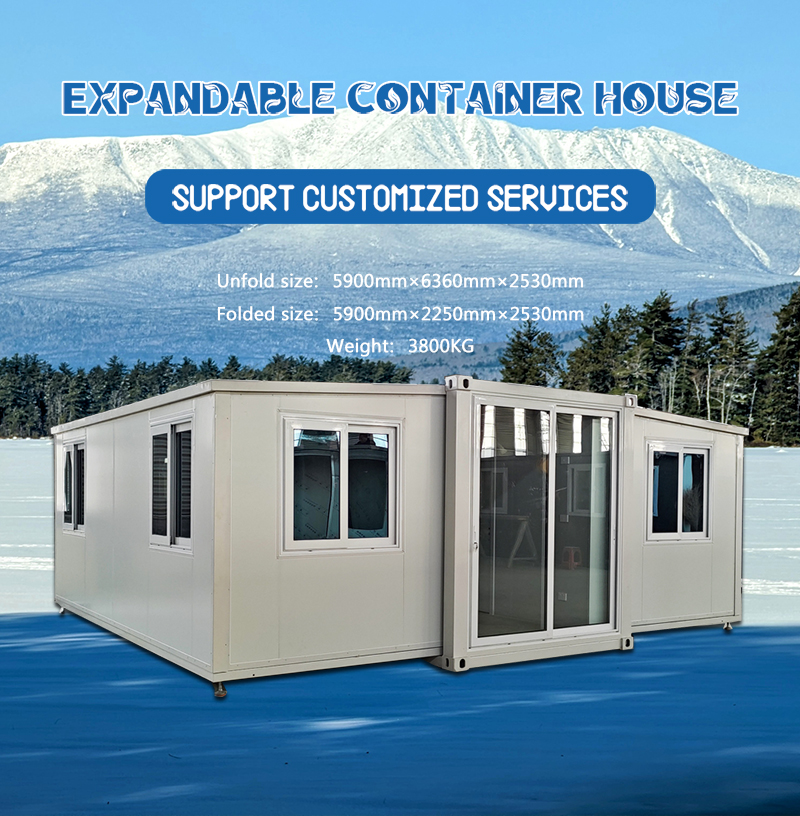

Unfold size: 5900*6360*2530mm
Folded size: 5900*2250*2530mm
Weight: 3800KG
Service life: 30~40 years
Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

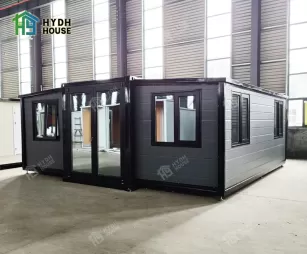

20Ft Expandable Mobile Home
HONGYU DINGHAO’s 20ft expandable mobile homes are designed for compact living with versatility and convenience. These homes expand to provide a larger interior space, offering comfort while maintaining easy mobility. Built with high-quality materials, they are durable, energy-efficient, and suitable for various residential and commercial applications. With pre-installed windows and sleek PVC corner trims, our homes are stylish, functional, and easy to transport, making them ideal for temporary or long-term use.
R&D Capacity
The company has 8 years of research and development and production experience.
Production Capacity
We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.
Quality Control
Most of the materials used in the caravan mobile homes have passed CECNAS, BV, iso9001 and other certifications.
Technical capacity
The company has a complete new modular housing R & D system, technical system, manufacturing system and operation and maintenance system, has provided guidance and help to a large number of customers.
Trade Capacity
Our caravan mobile homes are sold all over the world and we have rich experience in foreign trade.
CEertificates
Our 20ft prefab expandable houses have successfully passed the CE certification, and we will do better.
Product custom size | ||||
720 External standard size | 5900*4830*2530mm | |||
20FT External standard size | 5900*6420*2530mm | |||
30FT External standard size | 9000*6420*2530mm | |||
40FT External standard size | 11800*6420*2510mm | |||
2.4m height 20FT External standard size | 5900*6420*2560mm | |||
| 2.4m height 20FT External standard size | 11800*6420*2560mm | |||
Usage | House, Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room | |||
Advantages | 1. Large space, Large -sized windows and door. 20ft 40ft expandable container house can be choose, also supply customized according to your demand 2. Easy and fast installation. 4 hours/set, save labor cost 3. Pre-build the electricity and water plumbing, bathroom fittings 4. Waterproof wall board integrated design | |||
Product details | ||||
Main Material | Galvanized steel structure with sandwich panel wall and doors, windows, etc. | |||
Color | White, Charcoal or according to customer's requirement. | |||
Steel Structure | 3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU sandwich panel; Galvanized steel base plate. | |||
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering. | |||
Columns | 3mm Hot galvanized steel structure | |||
Wall | 50/75/100mm EPS/Rock woll/PU sandwich panel | |||
Door | Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm. Can be customized according to demand. | |||
Window | Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm. | |||
Floor | The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength. | |||
Connection Kits | PVC connection kits for floor, ceiling, walls. | |||
Electricity | 3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc. | |||
Optional Accessory | A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc. | |||
Product features | ||||
Water proof | 99.9999% | |||
Fireproofing | Grade A | |||
Withstand wind | 120km/h | |||
Anti-seismic | Grade 10 | |||
Sound insulation | ≥30 dB | |||
Roof live load | 1.0kn/m2 | |||
Floor live load | 2.5kn/m2 | |||
Wall live load | 1.0kn/m2 | |||
Service Life | 30~40years | |||
Residential
Office
Hotel
project
Rental housing
Homestay
As a professional caravan mobile home manufacturer, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.
Niger case
Russian casee
Australian case
