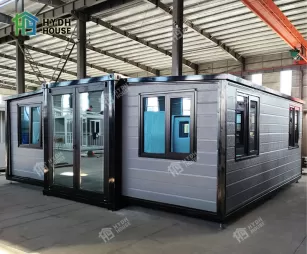

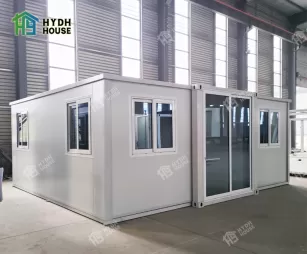

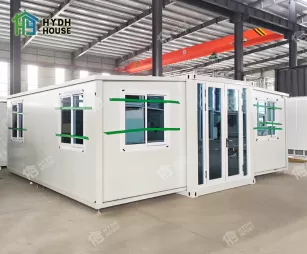

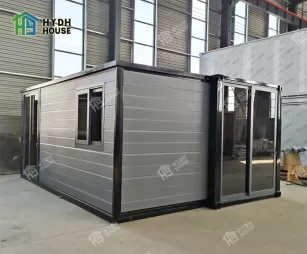

20ft Caravan House With Glass Curtain Walls

  • Unfold size: 5900*6360*2530mm

  • Folded size: 5900*2250*2530mm

  • Weight: 3800KG

  • Service life: 30~40 years

  • Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

  • GET A QUOTE: info@hydhhouse.com


  • Product Details
  • Advantages
  • Specifications
  • Application
  • Packaging
  • Case

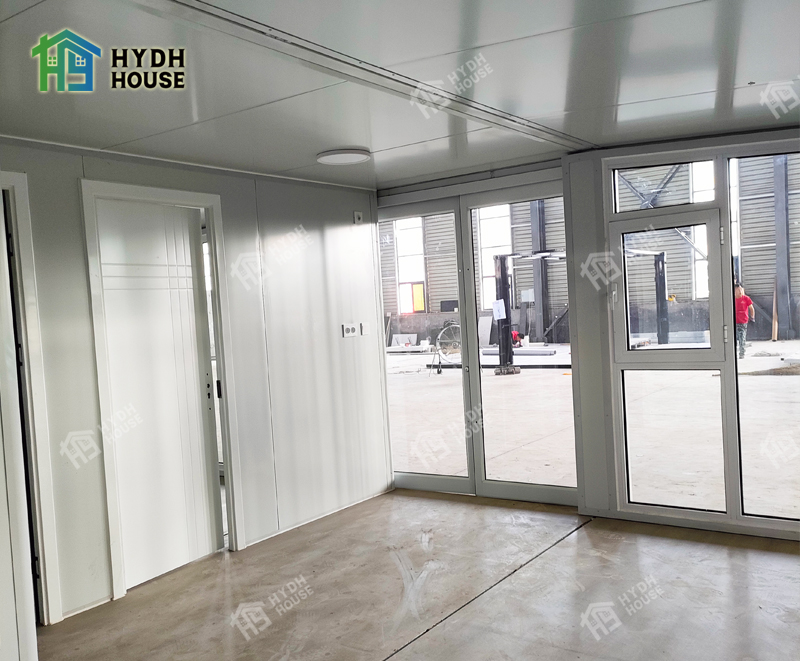

The caravan mobile home is a portable living solution designed to offer unparalleled comfort and functionality. This innovative 20ft expandable container house features glass curtain walls that flood the interior with natural sunlight, creating a bright and inviting space while reducing reliance on artificial lighting.


Caravan mobile home features

◆ Natural Light: Glass walls flood the interior with sunlight, creating a bright, inviting space and reducing reliance on artificial lighting.

◆ Panoramic Views: Large glass panels offer unobstructed views of the surrounding environment, enhancing the living experience.

◆ Modern Design: The sleek glass facade provides a contemporary, sophisticated aesthetic, setting the caravan apart.

◆ Energy Efficiency: High-performance glass improves insulation, reducing energy costs and maintaining a comfortable temperature.

◆ Outdoor Connection: The transparency blurs the line between indoor and outdoor spaces, offering a seamless connection with nature.


Caravan mobile home applications

◆ Residential Use: Ideal for temporary or permanent housing, offering a comfortable and modern living space.

◆ Office Spaces: Perfect for creating a professional and inviting workspace, suitable for remote work or small businesses.

◆ Dormitories: Provides a cost-effective and functional solution for student or worker accommodations.

◆ Commercial Use: Suitable for shops, bars, or emergency rooms, offering a unique and attractive commercial space.

◆ Disaster Relief: Caravan mobile home can be quickly deployed as temporary shelters or disaster relief rooms, providing immediate and effective solutions.

◆ Tourism and Hospitality: Ideal for mobile or temporary accommodations in the tourism industry, offering a unique experience for guests.

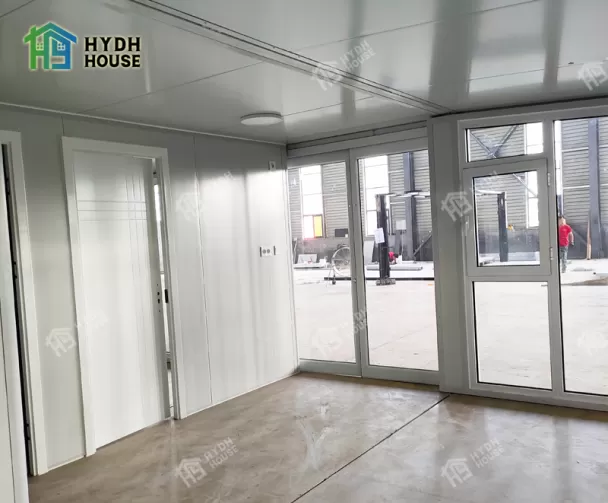

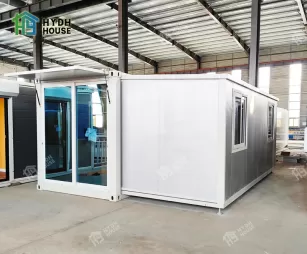

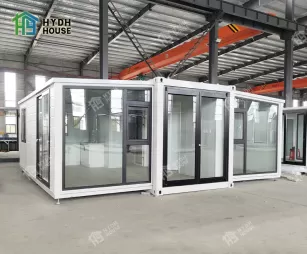

Caravan Mobile Home

Caravan Mobile Home

Caravan Mobile Home

Caravan Mobile Home

Caravan Mobile Home

R&D Capacity

R&D Capacity

The company has 8 years of research and development and production experience.

Production Capacity

Production Capacity

We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.

Quality Control

Quality Control

Most of the materials used in the caravan mobile homes have passed CECNAS, BV, iso9001 and other certifications.

Technical capacity

Technical capacity

The company has a complete new modular housing R & D system, technical system, manufacturing system and operation and maintenance system, has provided guidance and help to a large number of customers.

Trade Capacity

Trade Capacity

Our caravan mobile homes are sold all over the world and we have rich experience in foreign trade.

CEertificates

CEertificates

Our 20ft prefab expandable houses have successfully passed the CE certification, and we will do better.

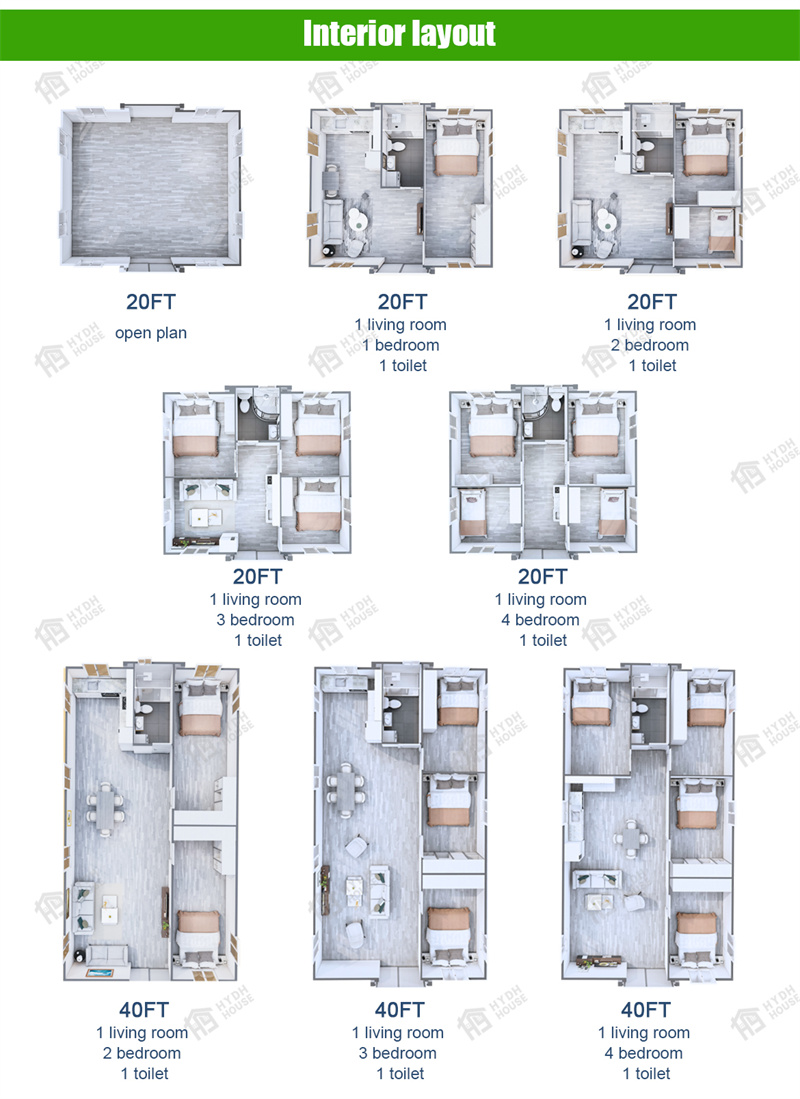

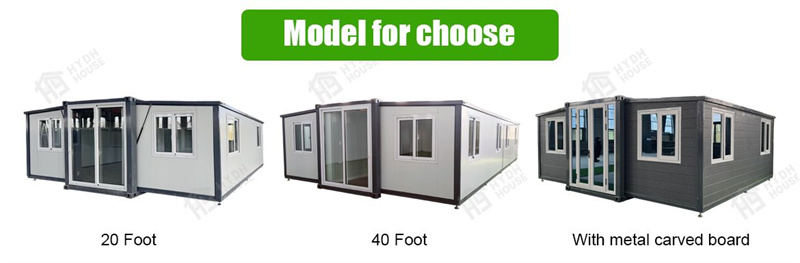

Product custom size
720 External standard size
5900*4830*2530mm
20FT External standard size
5900*6420*2530mm
30FT External standard size
9000*6420*2530mm
40FT External standard size
11800*6420*2510mm
2.4m height 20FT External standard size
5900*6420*2560mm
2.4m height 20FT External standard size11800*6420*2560mm
Usage
House, Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room
Advantages
1. Large space, Large -sized windows and door. 20ft 40ft expandable container house can be choose, also supply customized according to your demand

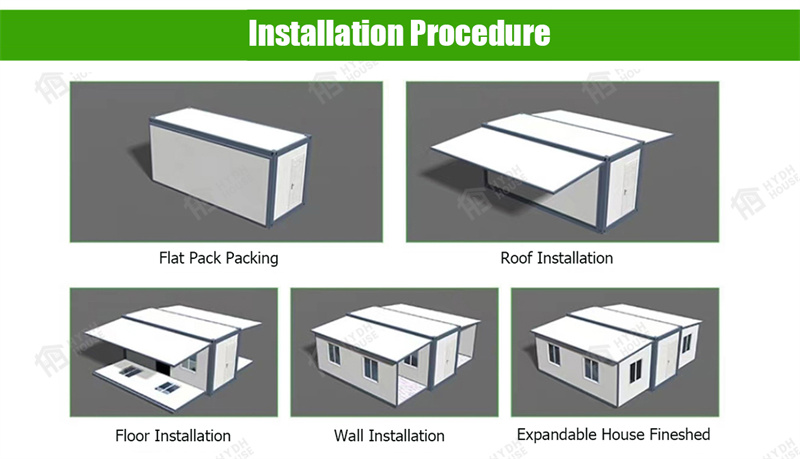

2. Easy and fast installation. 4 hours/set, save labor cost
3. Pre-build the electricity and water plumbing, bathroom fittings
4. Waterproof wall board integrated design



Product details
Main Material
Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Color
White, Charcoal or according to customer's requirement.
Steel Structure
3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU
sandwich panel; Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm.
Can be customized according to demand.
Window
Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Floor
The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength.
Connection Kits
PVC connection kits for floor, ceiling, walls.
Electricity
3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc.
Optional Accessory
A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc.


Product features
Water proof
99.9999%
Fireproofing
Grade A
Withstand wind
120km/h
Anti-seismic
Grade 10
Sound insulation
≥30 dB
Roof live load
1.0kn/m2
Floor live load
2.5kn/m2
Wall live load
1.0kn/m2
Service Life
30~40years



Residential

Residential

Office

Office

Hotel

Hotel

project

project

Rental housing

Rental housing

Homestay

Homestay

As a professional caravan mobile home manufacturer, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.

20Ft Expandable Granny Flats

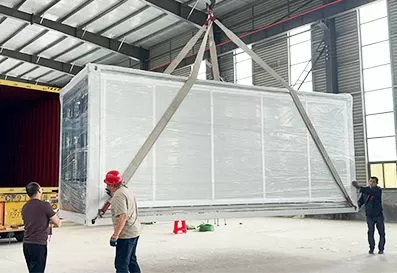

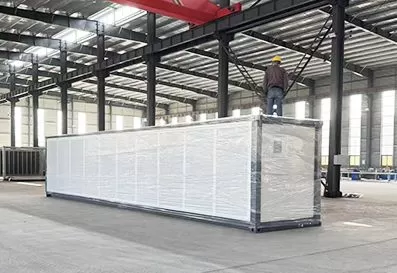

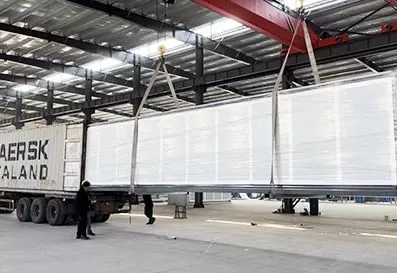

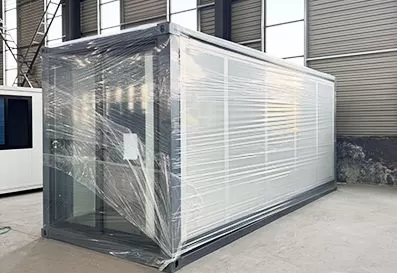

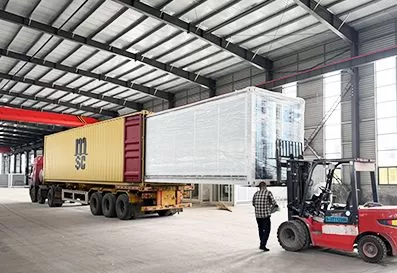

  • Caravan Mobile Home Packaging
