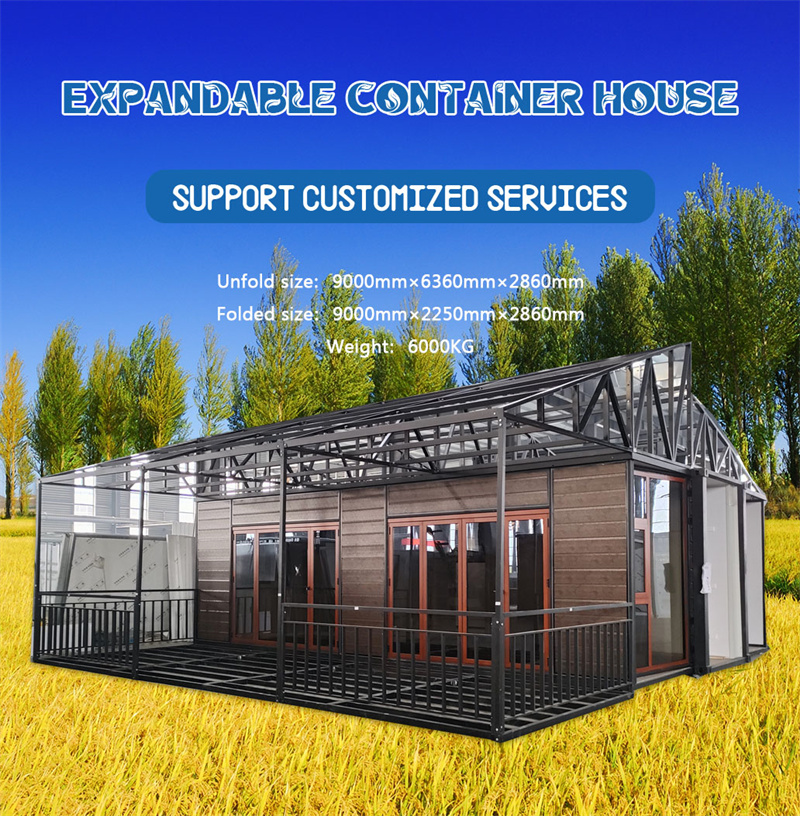

Unfold size: 9000*6360*2860mm
Folded size: 9000*2250*2860mm
Weight: 6000KG
Service life: 30~40 years
Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

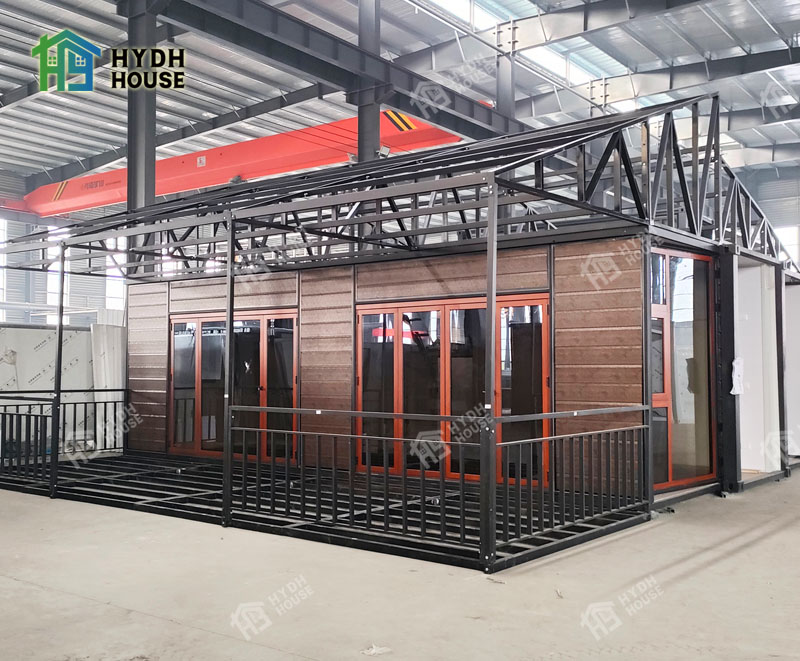

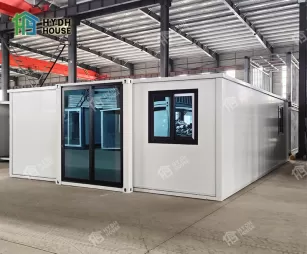

2.9m mobile expandable house is a versatile and space-efficient solution designed for both temporary and permanent use. This mobile prefab house boasts an internal height of 2.9 meters, providing ample space for comfortable living or working. Constructed with durable, modular prefab components, it can be easily expanded or reconfigured to meet varying space requirements. The structure is built to offer fast assembly, cost-effectiveness, and energy efficiency while maintaining high durability and safety standards.

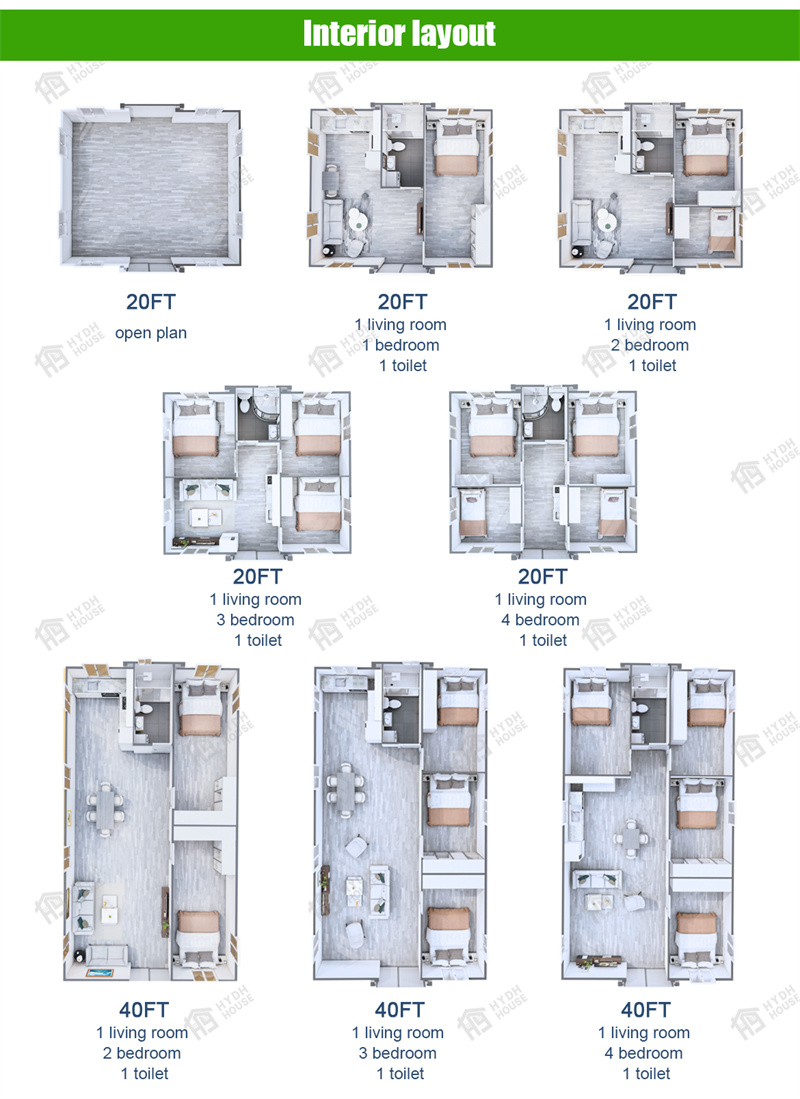

◆ Space & Design: Features large space with sizable windows and doors, available in 20ft and 40ft sizes, with customization options to suit specific demands.

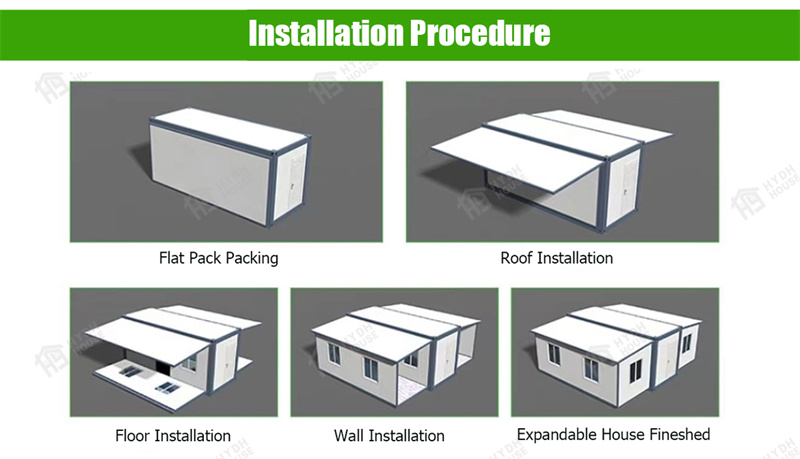

◆ Installation: Easy and fast installation process, taking approximately 4 hours per set, significantly reducing labor costs.
◆ Pre-built Utilities: Comes pre-built with electricity and water plumbing, as well as bathroom fittings, enhancing convenience.
◆ Waterproof Design: An integrated waterproof wall board design ensures the structure's resilience against the elements.
◆ Residential: Ideal for housing solutions where space and comfort are paramount.
◆ Office: Serves as a temporary or permanent office space, offering a professional environment.
◆ Hotel: Can be utilized as hotel rooms, providing guests with a comfortable stay.
◆ Project: Suitable for project sites, offering on-site accommodation or workspaces.
◆ Rental Housing: An option for rental properties, offering flexibility and ease of setup.
◆ Homestay: Perfect for homestays, providing guests with a unique and comfortable experience.
R&D Capacity
The company has 8 years of research and development and production experience.
Production Capacity
We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.
Quality Control
Most of the materials used in the products have passed CECNAS, BV, iso9001 and other certifications.
OEM Capacity
We provide creative design and construction services for private customization and other fields.
Trade Capacity
Our products are sold all over the world and we have rich experience in foreign trade.
CEertificates
Our 20ft prefab expandable houses have successfully passed the CE certification, and we will do better.
Product custom size | ||||
720 External standard size | 5900*4830*2530mm | |||
20FT External standard size | 5900*6420*2530mm | |||
30FT External standard size | 9000*6420*2530mm | |||
40FT External standard size | 11800*6420*2510mm | |||
2.4m height 20FT External standard size | 5900*6420*2560mm | |||
| 2.4m height 30FT External standard size | 9000*6420*2560mm | |||
| 2.4m height 40FT External standard size | 11800*6420*2560mm | |||
| 2.9m height 30FT External standard size | 9000*6420*2860mm | |||
Usage | House,Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room | |||
Advantages | 1. Large space, Large -sized windows and door. 20ft 40ft can be choose, also supply customized according to your demand 2. Easy and fast installation. 4 hours/set, save labor cost 3. Pre-build the electricity and water plumbing, bathroom fittings 4. Waterproof wall board integrated design | |||
Product details | ||||

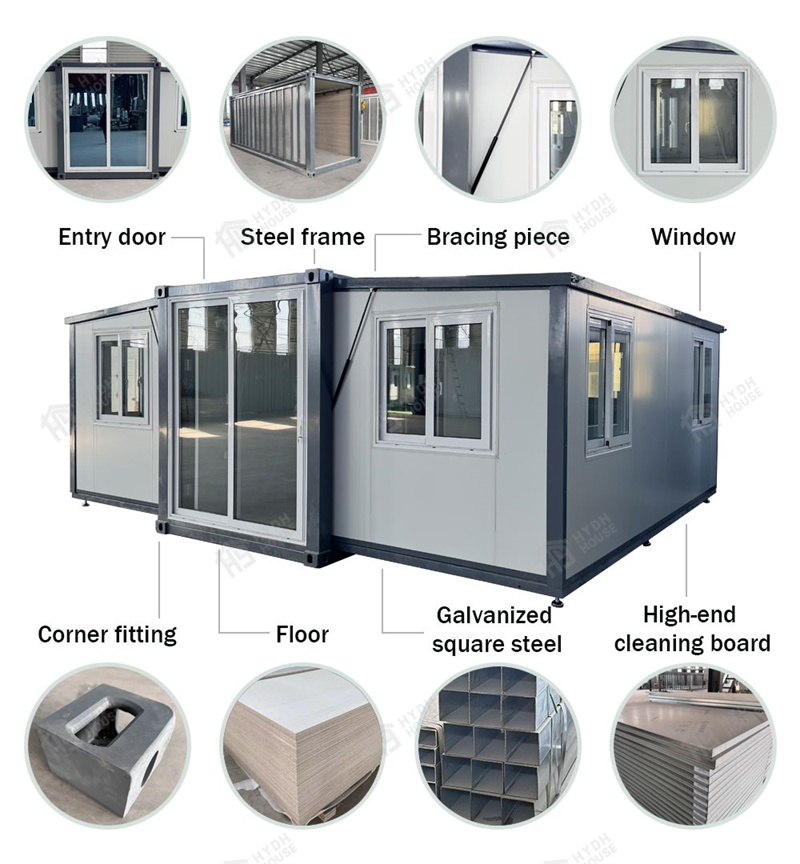

Main Material | Galvanized steel structure with sandwich panel wall and doors, windows, etc. | |||
Color | White, Charcoal or according to customer's requirement. | |||
Steel Structure | 3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU sandwich panel; Galvanized steel base plate. | |||
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering. | |||
Columns | 3mm Hot galvanized steel structure | |||
Wall | 50/75/100mm EPS/Rock woll/PU sandwich panel | |||
Door | Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm. Can be customized according to demand. | |||
Window | Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm. | |||
Floor | The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength. | |||
Connection Kits | PVC connection kits for floor, ceiling, walls. | |||
Electricity | 3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc. | |||
Optional Accessory | A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc. | |||
Product features | ||||
Water proof | 99.9999% | |||
Fireproofing | Grade A | |||
Withstand wind | 120km/h | |||
Anti-seismic | Grade 10 | |||
Sound insulation | ≥30 dB | |||
Roof live load | 1.0kn/m2 | |||
Floor live load | 2.5kn/m2 | |||
Wall live load | 1.0kn/m2 | |||
Service Life | 30~40years | |||
Residential
Office
Hotel
project
Rental housing
Homestay
As a professional prefab container house supplier, Hongyu Dinghao Integrated Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.
Niger case
Russian case
Australian case
