Flat Packing Container House

Portable Prefabricated Residential

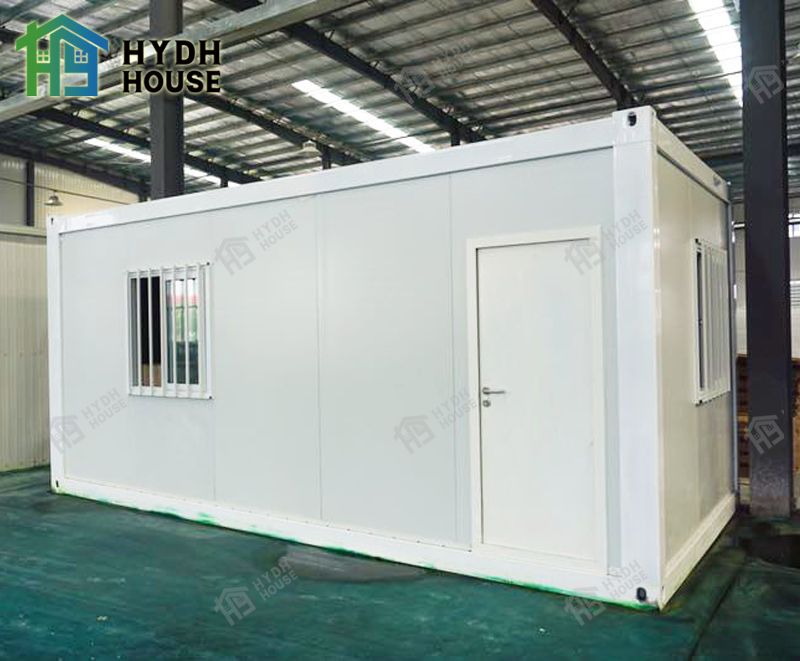

● Product name: Portable Prefabricated Residential Twin Bed Room

● Dimensions: 5800mm x 2200mm x 2300mm

● Service life: 20~25 years

● Can be stacked on top of each other (up to 3 layers) or placed side by side for extra space

● Removable and removable, custom interior design

● Can add decorative roof and terrace

● Waterproof, fireproof, soundproof and heat insulation


  • Product Details
  • Advantages
  • Specifications
  • Application

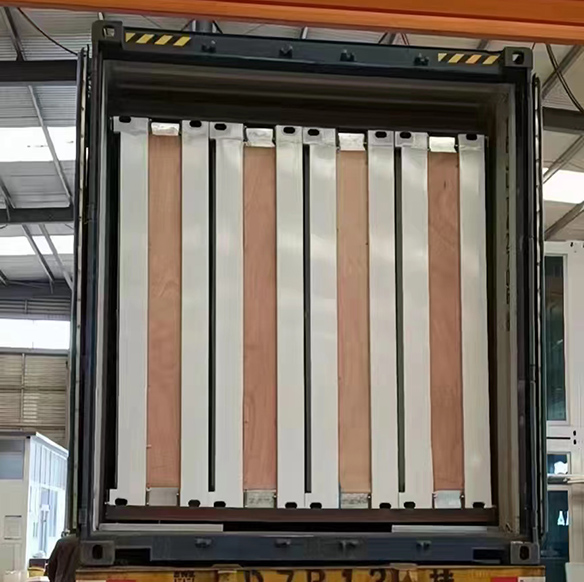

  • Packaging
  • Case

● Product name: Portable Prefabricated Residential Twin Bed Room

● Dimensions: 5800mm x 2200mm x 2300mm

● Service life: 20~25 years

● Can be stacked on top of each other (up to 3 layers) or placed side by side for extra space

● Removable and removable, custom interior design

● Can add decorative roof and terrace

● Waterproof, fireproof, soundproof and heat insulation

● Multi-purpose: residential, office, dormitory, shop, bar, emergency room, disaster room or any other purpose

● Customizable options: dimensions, interior Settings, walls, foyers, etc.


Flat packing container house is a major revolution in the construction industry under new materials. It bid farewell to environmentally unfriendly building materials, refused to pollute, and achieved real green environmental protection.


The application field of movable modular homes is very wide, including industry, commerce, agriculture, public welfare, disaster relief, tourism, military, education, military, municipal engineering, camp, etc., can achieve office, accommodation, conference, bathroom, kitchen, exhibition hall, command post, storage, entertainment room, kiosks and many other functions of customization, to meet the temporary or long-term needs of customers for space.


At present, our portable modular homes have been used in engineering camps, military camps, tourist holidays, disaster area resettlement, medical accommodation and so on. With the increasing awareness of consumers on energy saving, low-carbon and circular economy, the revolutionary era of residential industrialization has arrived, and prefabricated, personalized and intelligent buildings will be basically completed by factories in the future. Therefore, the modular portable homes will play an important role in the future temporary housing market.

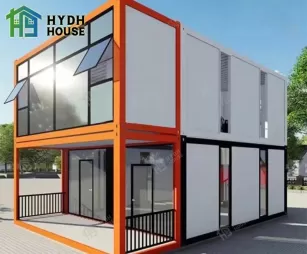

Portable Prefabricated Residential Twin Bed Room

Portable Prefabricated Residential Twin Bed RoomPortable Prefabricated Residential Twin Bed Room

Portable Prefabricated Residential Twin Bed Room

Portable Prefabricated Residential Twin Bed Room

Portable Prefabricated Residential Twin Bed Room

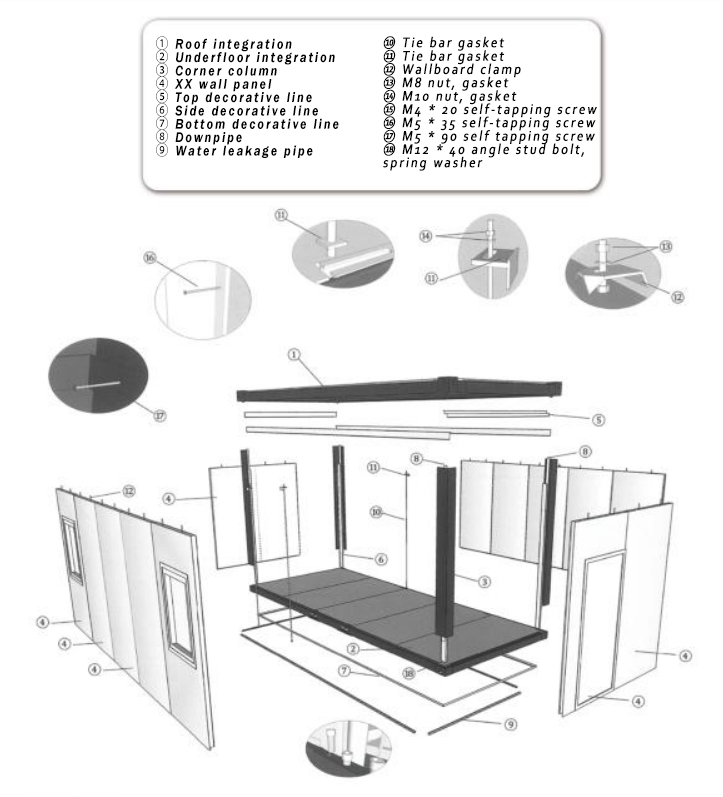

Quick Installation and Flexible Combination

Quick Installation and Flexible Combination

Quick installation, flexible combination, rugged and durable, simple transportation

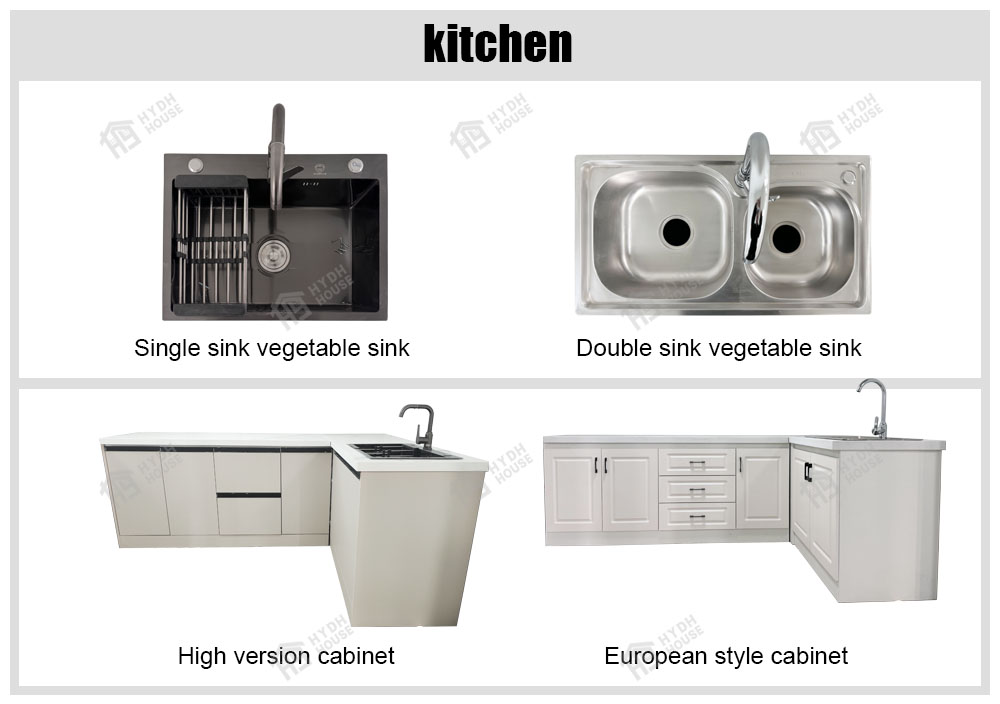

Complete Supporting Facilities

Complete Supporting Facilities

Complete supportng faclities canbe matched with different shapes of roof, corridor, canopy and stars

Fast Installation No Construction Waste

Fast Installation and No Construction Waste

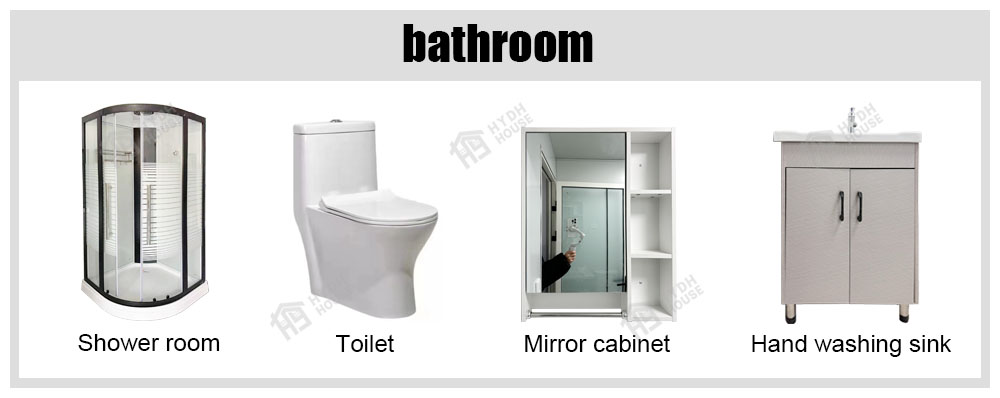

According to the needs of decoration, there arespeculbathroombox, shower sox, janitor room for choice.

Flexible Layout and Various Shapes

Flexible Layout and Various Shapes

Door window layout is agile, modelling is beautiful, can move, can repeat use.

SizeLength6058mm / 6000mm or customized

Width2438mm /3000mm or customized

Height2600mm / 2791mm / 3000mm or customized

Clear height indoor5800mm*2200mm*2300mm, it is changable

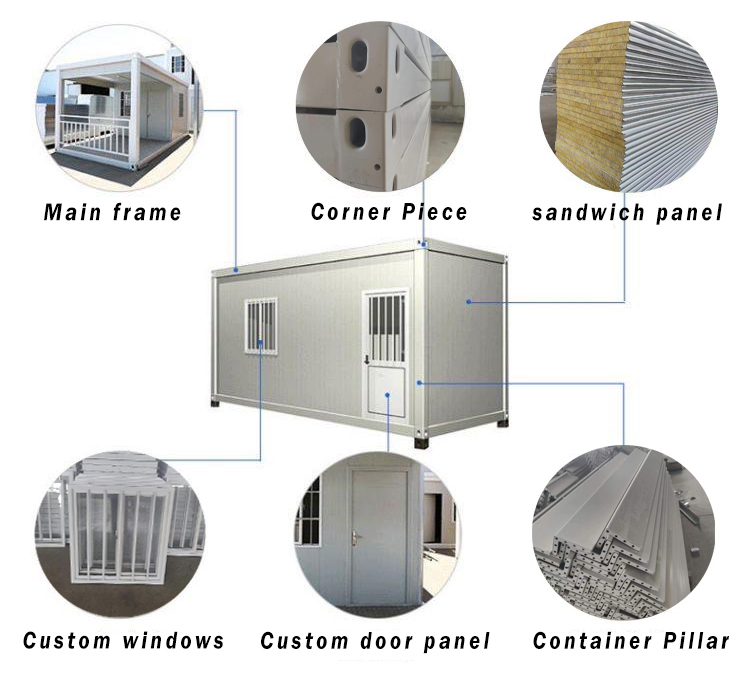

Standard accessoryRoof SystemTop structure + 70mm thick integrated PU foam insulation + embedded electrical system

Chassis Systemsteel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional)

Chassis SystemPermitted loading:>2.5KN/m²

Wall System50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel

Door SystemSteel door / Fire-proof door / Sandwich panel door

Window SystemAluminum alloy shutter window and the plastic-steel window, single or double glass

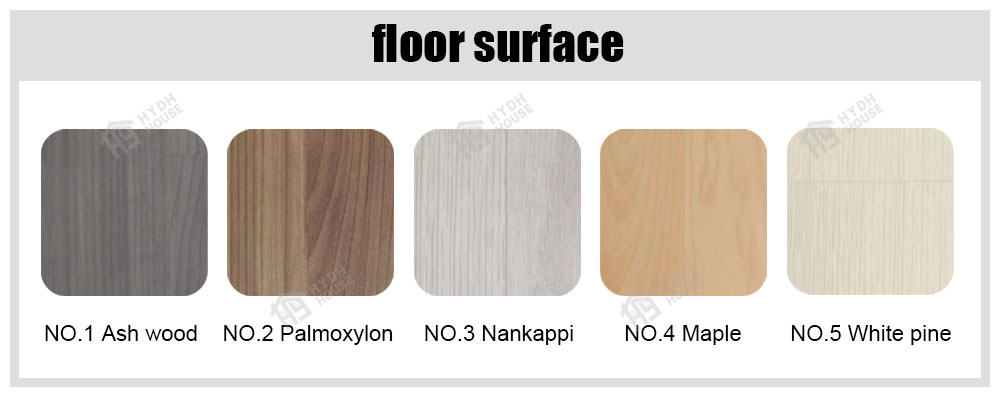

Floor SystemPVC, plywood or customized
OptionDrainage systemProvided plan, design and constrution

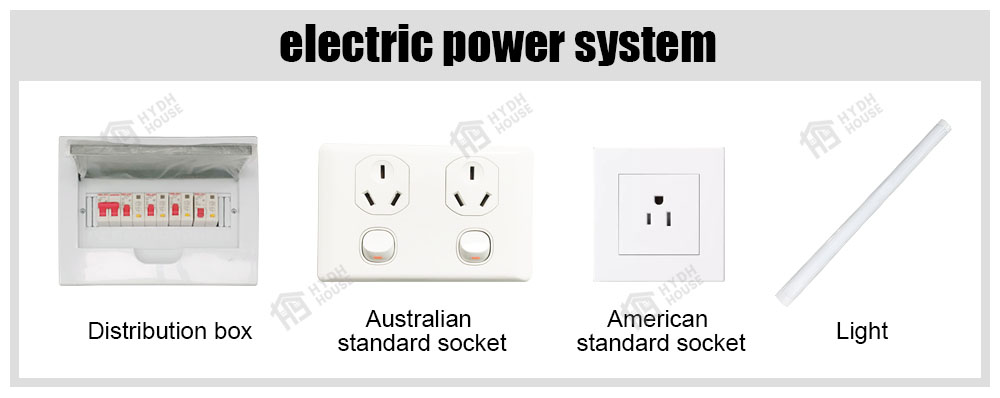

Electric systemProvided plan, design and constrution
Technical parameterResistant temperature-40ºC to 40ºC

Wind resistance210km/h

Earthquake resistanceGrade 8

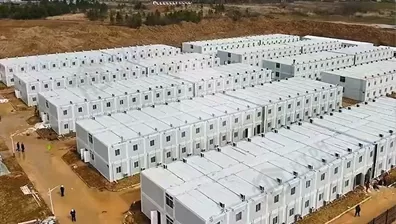

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

Movable Modular Homes Application

As a professional movable modular homes supplier, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.

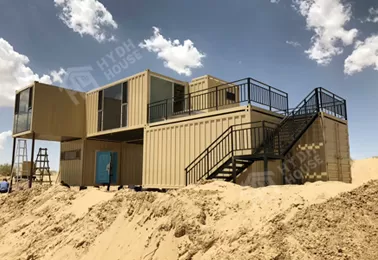

Extended house with carved metal panels

Flat Packing Container Room

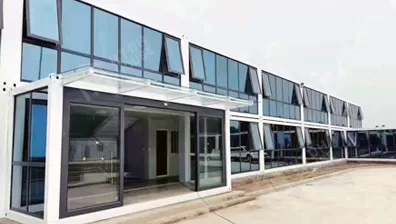

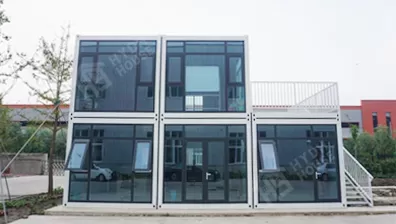

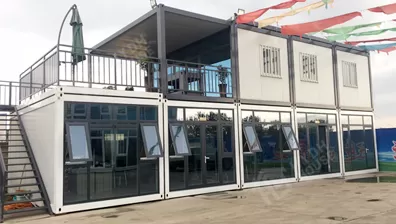

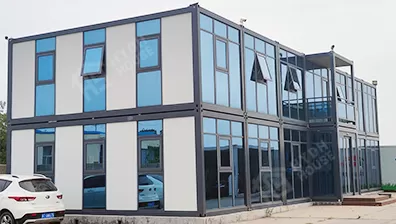

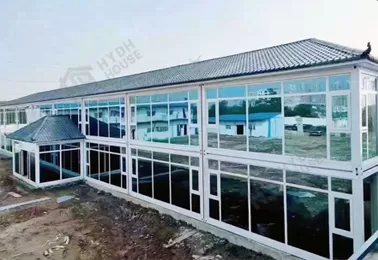

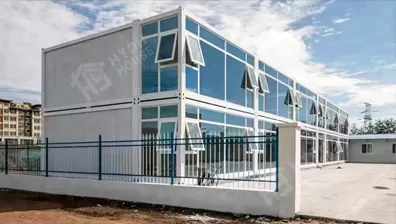

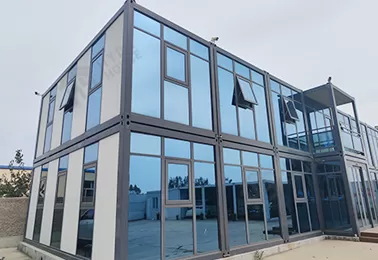

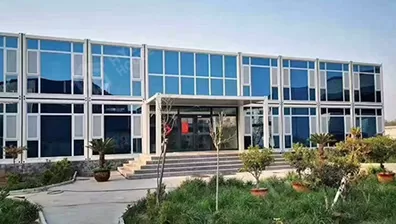

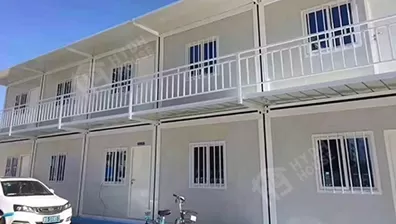

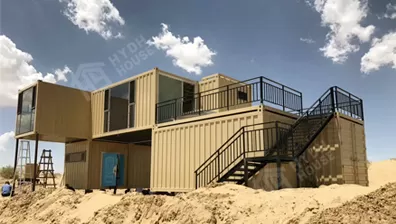

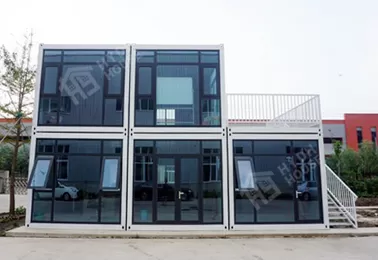

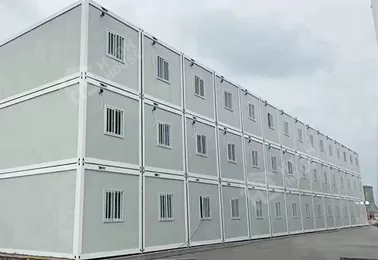

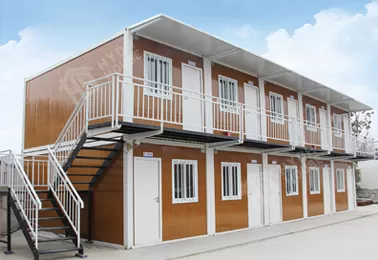

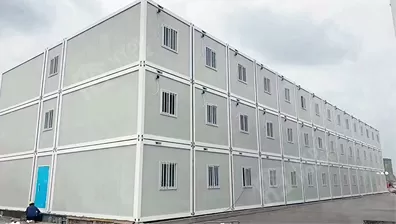

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case

Flat Packing Container House Case
