Inner Height: 2.4 meters

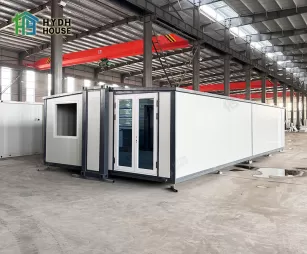

Unfold size: 5900*6420*2560mm

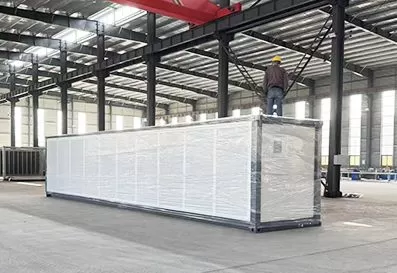

Folded size: 5900*2250*2560mm
Weight: 3500KG
Service life: 30~40 years
Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

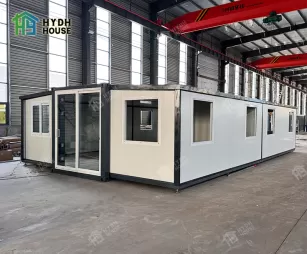

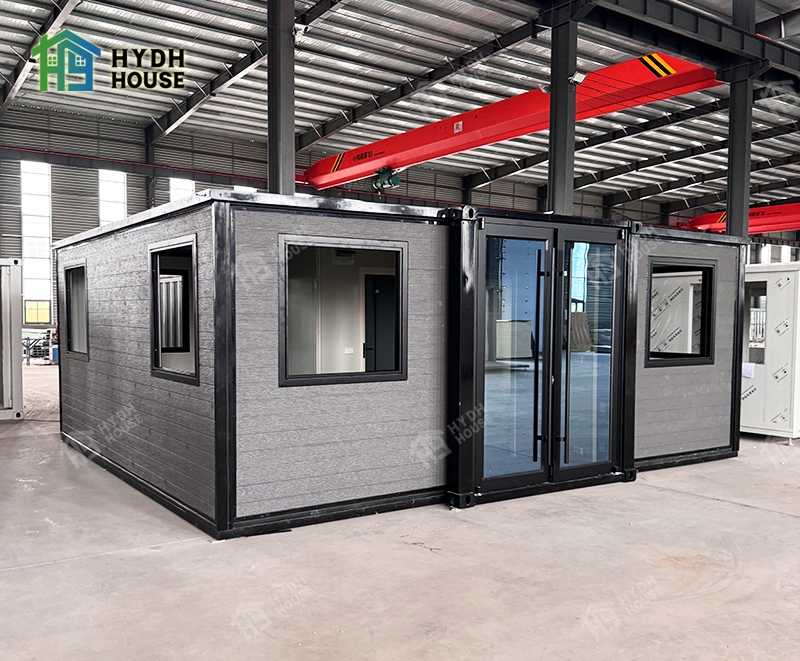

The portable expandable homes are designed to offer a versatile and modern living solution, combining functionality with aesthetic appeal. These expandable container houses feature a galvanized steel structure with sandwich panel walls, providing durability and insulation. The carved metal panels add a unique and sophisticated touch to the exterior, enhancing the visual appeal of the units. With a service life of 30 to 40 years, these expandable homes are built to last, offering a long-term, reliable solution for various residential and commercial needs.
◆ Customizable Sizes: Available in 20FT, 30FT, and 40FT sizes, with options for different internal heights, ensuring the perfect fit for your specific requirements.
◆ Durable Construction: Built with a 3mm hot galvanized steel structure and high-quality sandwich panels, these homes are designed to withstand harsh weather conditions and offer long-term durability.
◆ Pre-Built Utilities: Come with pre-installed electrical and plumbing systems, including bathroom fittings, reducing installation time and labor costs.
◆ Large-Sized Windows and Doors: Offer ample natural light and ventilation, enhancing the living experience and creating a spacious feel.
◆ Waterproof and Fireproof: Waterproof rating of 99.9999% and fireproofing grade A ensure safety and protection.
◆ Sound Insulation: ≥30 dB sound insulation provides a quiet and peaceful living environment.

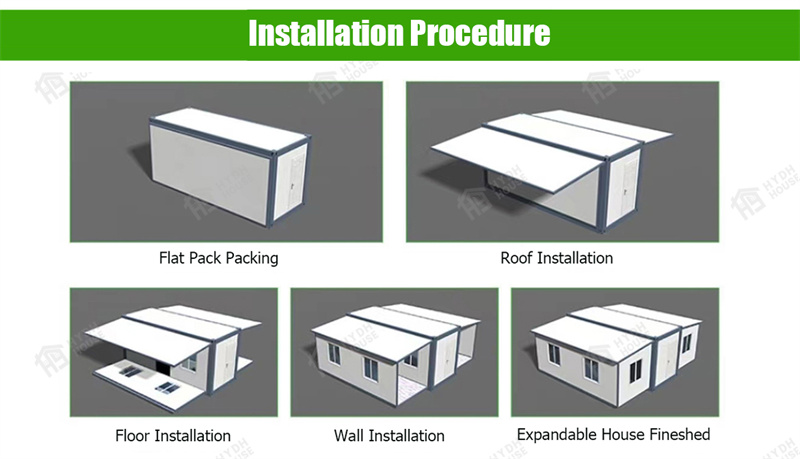

◆ Quick Installation: Easy and fast installation process, with each set taking only 4 hours, significantly reducing labor costs.
◆ Long Service Life: With a service life of 30 to 40 years, these portable expandable homes are a long-term, reliable solution.
◆ Residential Use: Ideal for temporary or permanent housing, offering a comfortable and modern living space for families or individuals.
◆ Office Spaces: Perfect for creating professional and inviting workspaces, suitable for remote work or small businesses.
◆ Dormitories: Provides a cost-effective and functional solution for student or worker accommodations.
◆ Commercial Use: Suitable for shops, bars, or emergency rooms, offering a unique and attractive commercial space.
◆ Disaster Relief: Can be quickly deployed as temporary shelters or disaster relief rooms, providing immediate and effective solutions.
◆ Tourism and Hospitality: Ideal for mobile or temporary accommodations in the tourism industry, offering a unique experience for guests.
R&D Capacity
The company has 8 years of research and development and production experience

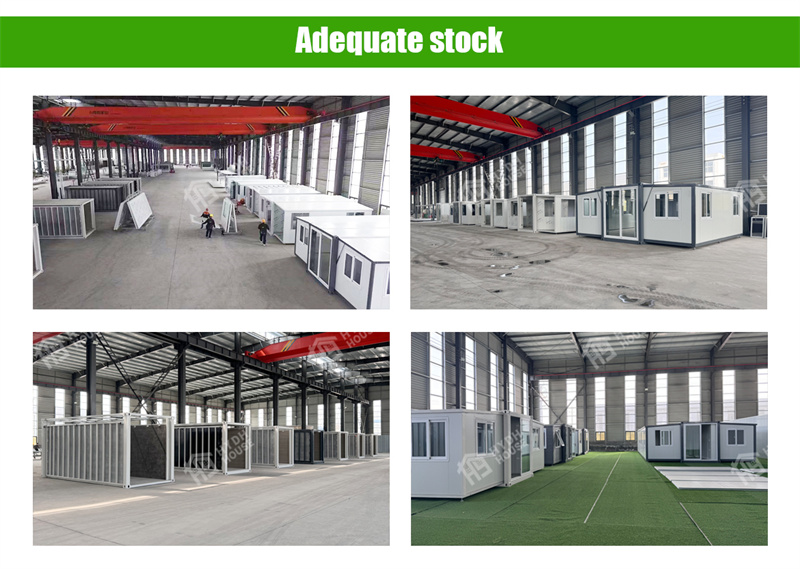

Production Capacity
We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.
Quality Control
Most of the materials used in the portable expandable homes have passed CECNAS, BV, ISO9001 and other certifications.
OEM Capacity
We provide creative design and construction services for private customization and other fields.
Trade Capacity
Our products are sold all over the world and we have rich experience in foreign trade.
CE certificates
Our portable tiny homes have successfully passed the CE certification, and we will do better

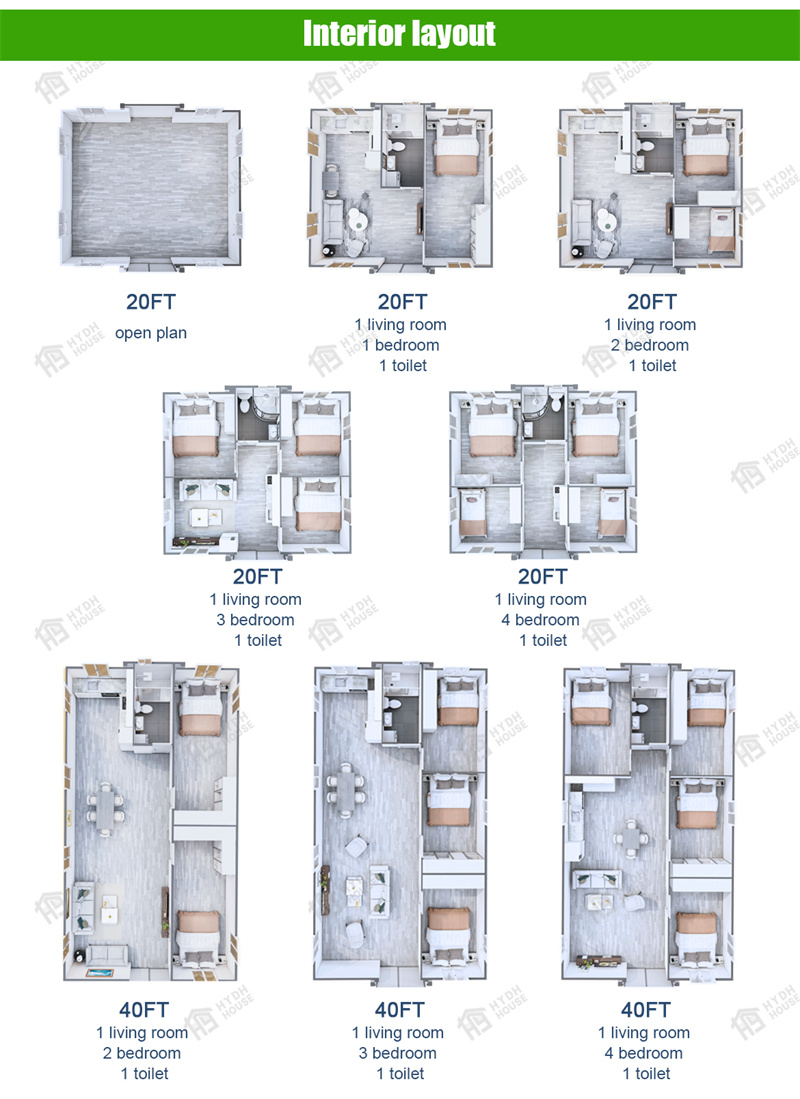

Product custom size | ||||
720 External standard size | 5900*4830*2530mm | |||
20FT External standard size | 5900*6420*2530mm | |||
30FT External standard size | 9000*6420*2530mm | |||
40FT External standard size | 11800*6420*2510mm | |||
2.4m height 20FT External standard size | 5900*6420*2560mm | |||
2.4m height 20FT External standard size | 11800*6420*2560mm | |||
Usage | House, Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room | |||
Advantages | 1. Large space, Large -sized windows and door. 20ft 40ft expandable container house can be choose, also supply customized according to your demand 2. Easy and fast installation. 4 hours/set, save labor cost 3. Pre-build the electricity and water plumbing, bathroom fittings 4. Waterproof wall board integrated design |
Product details | ||||
Main Material | Galvanized steel structure with sandwich panel wall and doors, windows, etc. | |||
Color | White, Charcoal or according to customer's requirement. | |||
Steel Structure | 3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU sandwich panel; Galvanized steel base plate. | |||
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering. | |||
Columns | 3mm Hot galvanized steel structure | |||
Wall | 50/75/100mm EPS/Rock woll/PU sandwich panel | |||
Door | Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm. Can be customized according to demand. | |||
Window | Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm. | |||
Floor | The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength. | |||
Connection Kits | PVC connection kits for floor, ceiling, walls. | |||
Electricity | 3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc. | |||
Optional Accessory | A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc. |
Product features | ||||
Water proof | 99.9999% | |||
Fireproofing | Grade A | |||
Withstand wind | 120km/h | |||
Anti-seismic | Grade 10 | |||
Sound insulation | ≥30 dB | |||
Roof live load | 1.0kn/m2 | |||
Floor live load | 2.5kn/m2 | |||
Wall live load | 1.0kn/m2 | |||
Service Life | 30~40years |
Residential
Office
Hotel
project
Rental housing
Homestay
As a professional portable expandable homes supplier, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.
Niger case
Russian case
Australian case
