2.4 meters internal height

20ft Portable Tiny Home

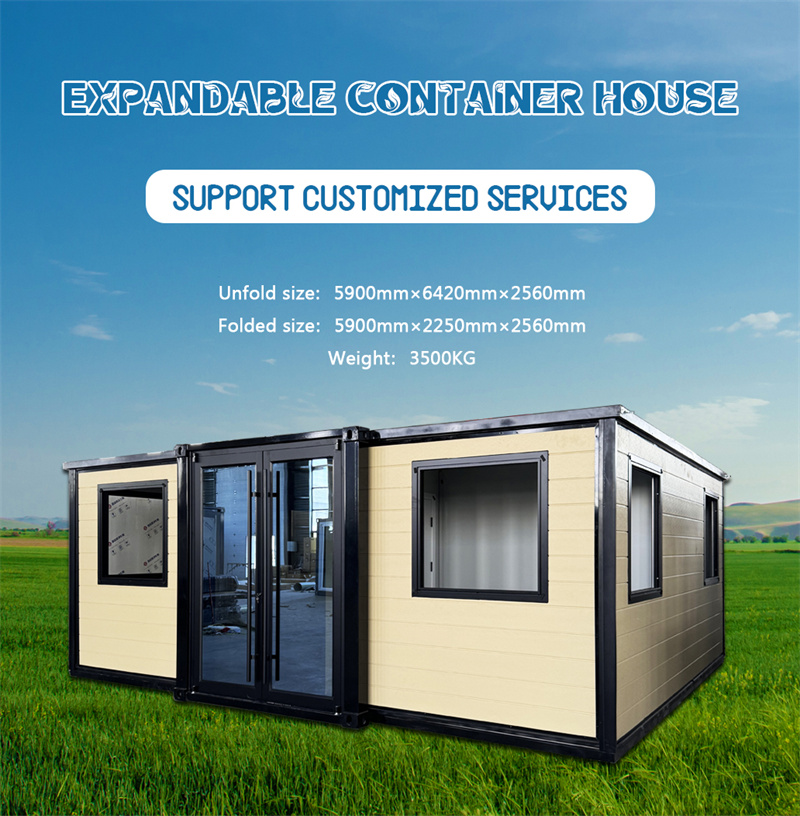

  • Unfold size: 5900*6420*2560mm

  • Folded size: 5900*2250*2560mm

  • Weight: 3500KG

  • Service life: 30~40 years

  • Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

  • GET A QUOTE: info@hydhhouse.com


  • Product Details
  • Advantages
  • Specifications
  • Application
  • Packaging
  • Case

Designed for the demands of modern living, the expandable prefab tiny home is a robust and innovative housing solution. Constructed with a galvanized steel structure, these expandable container houses offer a service life of 30-40 years and feature enhanced durability and insulation with high quality materials. Available in white, charcoal, or custom colors, 20ft expandable container house can be tailored to specific requirements with steel/aluminum frame doors and windows that provide thermal efficiency and security.


Expandable tiny house features

◆ Durability: Built with 3mm hot galvanized steel and 50mm insulation for long-lasting performance.

◆ Customization: Prefab shipping container homes are available in various colors and can be tailored to specific requirements.

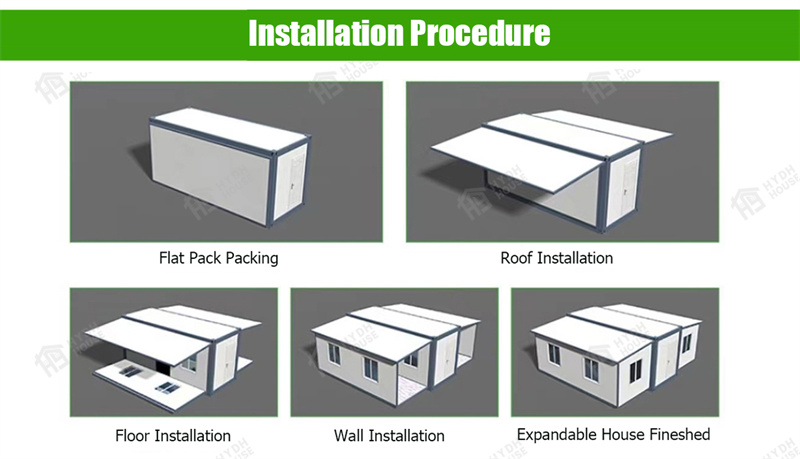

◆ Installation Speed: Prefabricated for rapid installation, taking only 4 hours to set up.

◆ Integrated Utilities: 20ft expandable tiny home is pre-built with electricity, water plumbing, and bathroom fittings for immediate usability.


Expandable tiny house applications:

◆ Residential: Ideal for compact living spaces that require quick setup and customizable living areas.

◆ Commercial: Suitable for offices, dormitories, shops, and bars needing durable and expandable structures.

◆ Emergency and Relief: Perfect for emergency rooms and disaster relief rooms, offering rapid deployment and robust construction.

◆ Temporary Solutions: Efficient for temporary housing needs due to its quick installation and deconstruction.

20ft Portable Tiny Home

20ft Portable Tiny Home

20ft Portable Tiny Home

20ft Portable Tiny Home

20ft Portable Tiny Home

20ft Portable Tiny Home

20ft Portable Tiny Home

R&D Capacity

R&D Capacity

The company has 8 years of research and development and production experience.

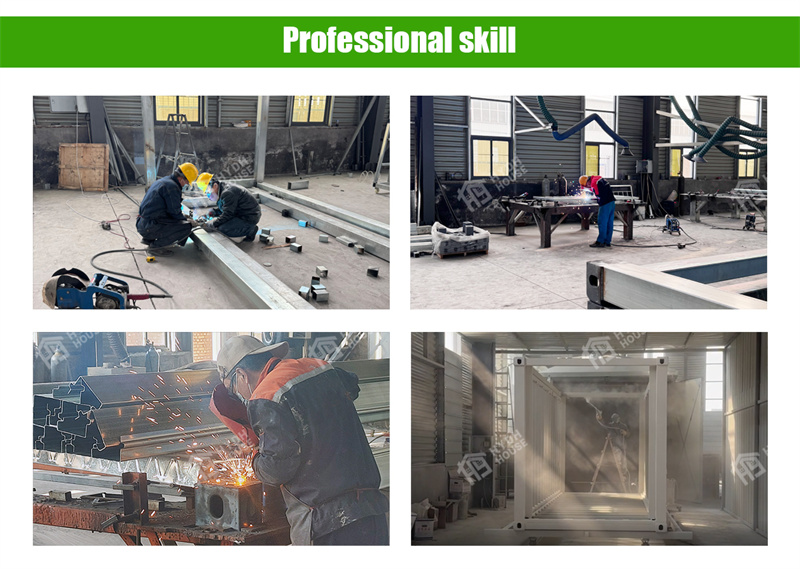

Production Capacity

Production Capacity

We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.

Quality Control

Quality Control

Most of the materials used in the expandable prefab tiny homes have passed CECNAS, BV, iso9001 and other certifications.

OEM Capacity

OEM Capacity

We provide creative design and construction services for private customization and other fields.

Trade Capacity

Trade Capacity

Our prefab tiny homes are sold all over the world and we have rich experience in foreign trade.

CE certificates

CE certificates

Our 20ft prefab expandable houses have successfully passed the CE certification, and we will do better.

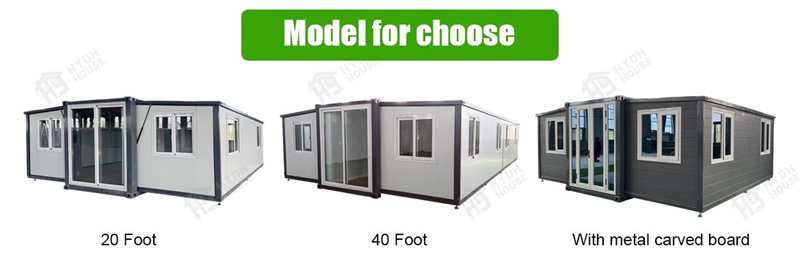

Product custom size
720 External standard size
5900*4830*2530mm
20FT External standard size
5900*6420*2530mm
30FT External standard size
9000*6420*2530mm
40FT External standard size
11800*6420*2510mm
2.4m height 20FT External standard size
5900*6420*2560mm
2.4m height 40FT External standard size11800*6420*2560mm
Usage
House, Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room
Advantages
1. Large space, Large -sized windows and door. 20ft 40ft can be choose, also supply customized according to your demand
2. Easy and fast installation. 4 hours/set, save labor cost
3. Pre-build the electricity and water plumbing, bathroom fittings
4. Waterproof wall board integrated design


Product details
Main Material
Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Color
White, Charcoal or according to customer's requirement.
Steel Structure
3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU
sandwich panel; Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm.
Can be customized according to demand.
Window
Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Floor
The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength.
Connection Kits
PVC connection kits for floor, ceiling, walls.
Electricity
3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc.
Optional Accessory
A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc.


Product features
Water proof
99.9999%
Fireproofing
Grade A
Withstand wind
120km/h
Anti-seismic
Grade 10
Sound insulation
≥30 dB
Roof live load
1.0kn/m2
Floor live load
2.5kn/m2
Wall live load
1.0kn/m2
Service Life
30~40years


Residential

Residential

Office

Office

Hotel

Hotel

project

project

Rental housing

Rental housing

Homestay

Homestay

As a professional expandable tiny homes supplier, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.

20Ft Expandable Prefab House





  • Expandable Prefab Tiny Home Packaging

  • Expandable Prefab Tiny Home Packaging

  • Expandable Prefab Tiny Home Packaging

  • Expandable Prefab Tiny Home Packaging

Niger case

Niger case

Russian case

Russian case

Australian case

Australian case
