2.4 meters internal height

20ft expandable house of heightened

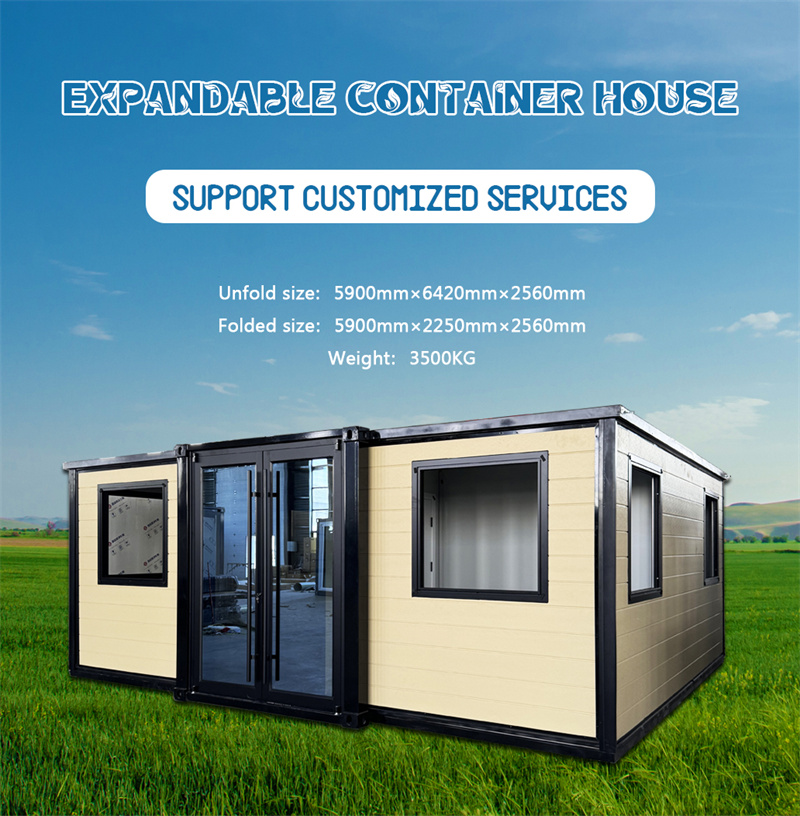

  • Unfold size: 5900*6420*2560mm

  • Folded size: 5900*2250*2560mm

  • Weight: 3500KG

  • Service life: 30~40 years

  • Optional Accessory: Decorative material, kitchen,Toilet, bathroom, electrical appliance, furniture, etc.

  • GET A QUOTE: info@hydhhouse.com


  • Product Details
  • Advantages
  • Specifications
  • Applications
  • Packaging
  • Case

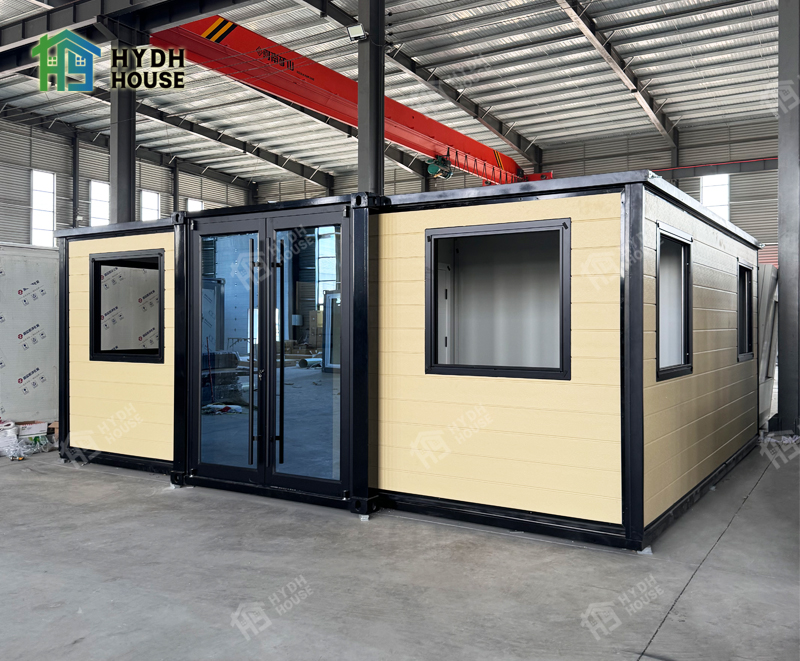

Expandable portable homes are innovative housing solutions designed for contemporary living. The expandable container house offers a blend of durability, customization, and quick installation, making them ideal for residential, commercial, and emergency purposes.


Constructed with a galvanized steel structure, 20ft expandable container house ensures a service life of 30-40 years and feature enhanced durability and insulation with materials like 18mm fiber cement boards, 1.8mm PVC flooring, and 50mm rock wool, EPS, or PU sandwich panels. Available in standard sizes and customizable designs, these detachable container houses are pre-built with integrated utilities, including electricity and water plumbing, as well as bathroom fittings, ensuring readiness upon installation.


Expandable portable homes features:

Durable Construction: 3mm hot galvanized steel structure with 18mm fiber cement boards and 50mm insulation for long-lasting performance.

◆ Customizable Design: Available in white, charcoal, or custom colors, with steel/aluminum frame doors and windows for thermal efficiency and security.

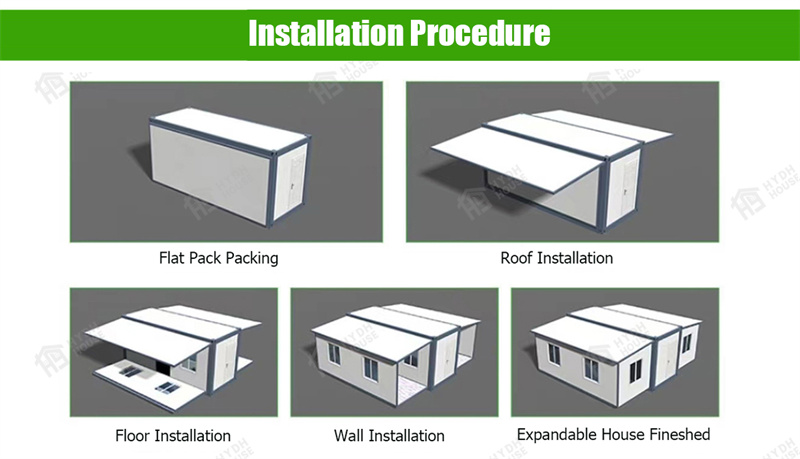

◆ Quick Installation: Prefabricated nature allows for rapid setup, taking only 4 hours, saving on labor costs.

◆ Integrated Utilities: Pre-built with electricity, water plumbing, and bathroom fittings for immediate usability.

◆ Expandable Space: Expandable portable home offers increased living or working space as needed, providing flexibility and adaptability.


Expandable portable homes applications:

◆ Residential: Ideal for housing solutions that require quick setup and customizable living spaces.

◆ Commercial: Suitable for office spaces, shops, bars, and other commercial ventures needing durable and expandable structures.

◆ Emergency and Disaster Relief: Perfect for emergency rooms and disaster relief rooms, offering rapid deployment and robust construction.

◆ Temporary Housing: Efficient for temporary housing needs due to its quick installation and deconstruction.

20ft expandable house of heightened

20ft expandable house of heightened

20ft expandable house of heightened

20ft expandable house of heightened

20ft expandable house of heightened

20ft expandable house of heightened

20ft expandable house of heightened

R&D Capacity

R&D Capacity

The company has 8 years of research and development and production experience.

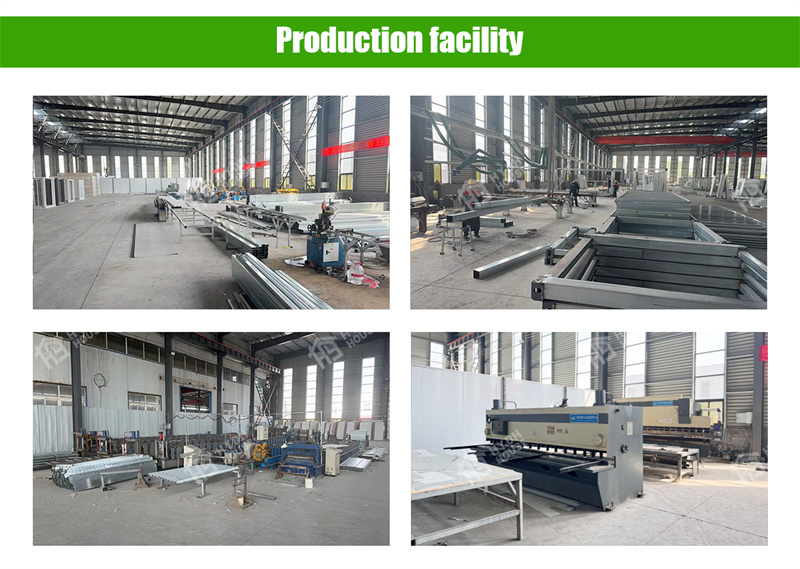

Production Capacity

Production Capacity

We have a complete R & D system, technical system, manufacturing system and operation and maintenance system.

Quality Control

Quality Control

Most of the materials used in the expandable container homes for sale have passed CECNAS, BV, iso9001 and other certifications.

Technical capacity

Technical capacity

The company has a complete new modular housing R & D system, technical system, manufacturing system and operation and maintenance system, has provided guidance and help to a large number of customers.

Trade Capacity

Trade Capacity

Our expandable portable houses are sold all over the world and we have rich experience in foreign trade.

CEertificates

CEertificates

Our 20ft prefab expandable houses have successfully passed the CE certification, and we will do better.

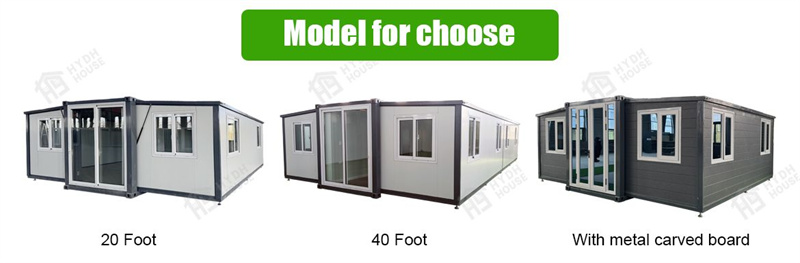

Product custom size
720 External standard size
5900*4830*2530mm
20FT External standard size
5900*6420*2530mm
30FT External standard size
9000*6420*2530mm
40FT External standard size
11800*6420*2510mm
2.4m height 20FT External standard size
5900*6420*2560mm
2.4m height 40FT External standard size11800*6420*2560mm
Usage
House,Office, Dormitory, Shop, Bar, Emergency Room, Disaster Relief Room
Advantages
1. Large space, Large -sized windows and door. 20ft 40ft can be choose, also supply customized according to your demand
2. Easy and fast installation. 4 hours/set, save labor cost
3. Pre-build the electricity and water plumbing, bathroom fittings
4. Waterproof wall board integrated design


Product details
Main Material
Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Color
White, Charcoal or according to customer's requirement.
Steel Structure
3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU
sandwich panel; Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm.
Can be customized according to demand.
Window
Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Floor
The load-bearing floor material of the three units is 18mm thick cement sanding board, which has high flatness, moisture resistance and waterproof strength.
Connection Kits
PVC connection kits for floor, ceiling, walls.
Electricity
3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc.
Optional Accessory
A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc.


Product features
Water proof
99.9999%
Fireproofing
Grade A
Withstand wind
120km/h
Anti-seismic
Grade 10
Sound insulation
≥30 dB
Roof live load
1.0kn/m2
Floor live load
2.5kn/m2
Wall live load
1.0kn/m2
Service Life
30~40years



Residential

Residential

Office

Office

Hotel

Hotel

project

project

Rental housing

Rental housing

Homestay

Homestay

As a professional expandable portable homes supplier, Hongyu Dinghao Module Housing is committed to the research and development, design, production, processing, sales, transportation, installation and construction, after-sales service and a series of complete supporting services of new integrated housing and supporting products, with 8 years of research and development and production experience, and has the right to import and export foreign trade.
